concrete paver machine

concrete paver machine
Price : 6 Lac / piece
Get Best Price

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier
Brand Name AASPA
Capacity 80 KM
Weight 800Kg
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Country of Origin
Model Name
Water Feeding System
Fully Automatic

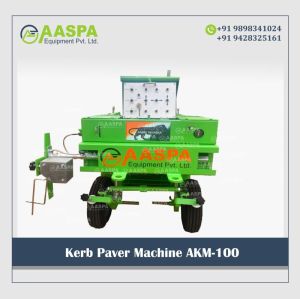

- AKM-100 KERB PAVER that can extrude is excess of 550 lin. mts. of kerbing per day at a sensible capital cost and with a small crew of semi-skilled labour.

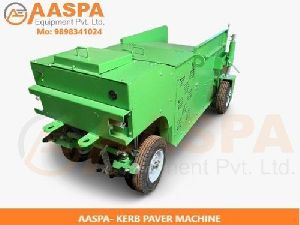

- AASPA AKM-100 Extrusion Type Kerb Paver Machine works on the extrusion principle, in which concrete is fed into the hopper and forced through a mould to form the required shape.

- AKM-100 is designed for laying up to 550 mm height and 700 mm width.

- The machine does not employ vibration, but achieves compaction by a ramming mechanism which forces the concrete into the specially designed mould attached to the primary unit.

- Automatic sensor for steering and height controls that follow reference line Activate Windows Go to Sete, to activate Nanclows.

- Quick-change mould design.

- The machine has no powered wheels - forward propulsion resultsfrom the opposite reaction to the ramming action.

- The flexibility mounted 16 hp petrol engine / 10 hp diesel engine drives the ruggedly designed ram operating mechanism and hydraulic pump.

- All top side covers are removable for ease of service.

- A small crew can successfully operate AKM-100.

- Production depends on crew size and outputs of up to 1000 lin. Mts. Per day have been achieved.

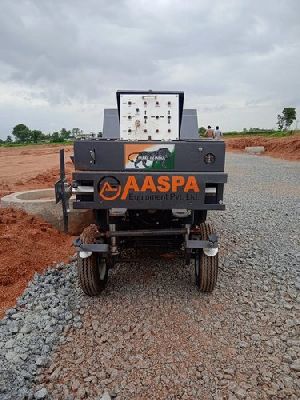

- AKM-100 is at multiple project sites with a variety of kerbing applications, supported by the team of experts from AASPA & performing to the full satisfaction of the customers.
