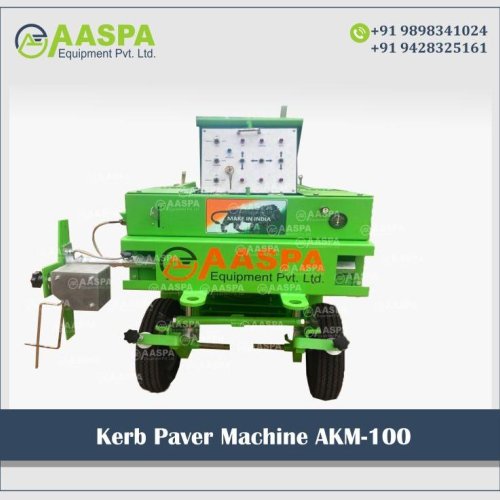

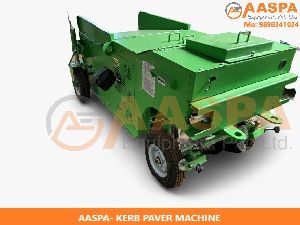

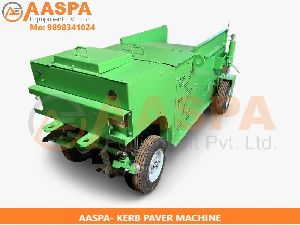

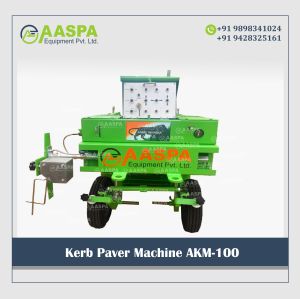

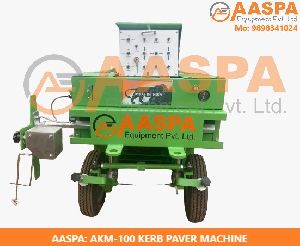

Concrete Kerb Laying Machine

Link Copied
5 Lac - 6.50 Lac / Piece
Business Type Manufacturer, Exporter, Supplier
Model Number AKM-100
Driven Type Mechanical
Color Light White, Light Green, Grey, Blue, Black, As Required
Click to view more

Product Details

Condition
New
Automatic Grade
Semi Automatic, Manual
Engine Power
20-40BHp
Application
ISO 9001:2008
Certification
ISO 9001:2008
Type
Kerb Laying Machine
Weight
700-800kg
Warranty
1year
Model Name
AKM100
Brand Name
Aaspa
Material
Mild Steel
Wheel Type
4
Length(without Mould)
1945 mm
Length(with Mould)
2710 mm
Height
930mm
Width
1155 mm
Weight with mould
915 kgs
Moulds
M.S Moulds to Customer Specication
Fuel Consumption
Petrol Engine - 3.5 ltrs / hour & Diesel Engine -1.5 ltrs/Hour
Minimum Radius of kerb
2.4 mtr
Drives
Main Drive -5/8”Pitch duplex chain/Hydraulics-VBelt
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Other
Delivery Time
READY STOCK
Packaging Details
AASPA

- AKM-100 KERB PAVER that can extrude is excess of 550 lin. mts. of kerbing per day at a sensible capital cost and with a small crew of semi-skilled labour.

- AASPA AKM-100 Extrusion Type Kerb Paver Machine works on the extrusion principle, in which concrete is fed into the hopper and forced through a mould to form the required shape.

- AKM-100 is designed for laying up to 550 mm height and 700 mm width.

- The machine does not employ vibration, but achieves compaction by a ramming mechanism which forces the concrete into the specially designed mould attached to the primary unit.

- Automatic sensor for steering and height controls that follow reference line Activate Windows Go to Sete, to activate Nanclows

- Quick-change mould design.

- The machine has no powered wheels - forward propulsion resultsfrom the opposite reaction to the ramming action.

- The flexibility mounted 16 hp petrol engine / 10 hp diesel engine drives the ruggedly designed ram operating mechanism and hydraulic pump.

- All top side covers are removable for ease of service.

- A small crew can successfully operate AKM-100.

- AKM-100 is at multiple project sites with a variety of kerbing applications, supported by the team of experts from AASPA & performing to the full satisfaction of the customers.
