kerb casting machine

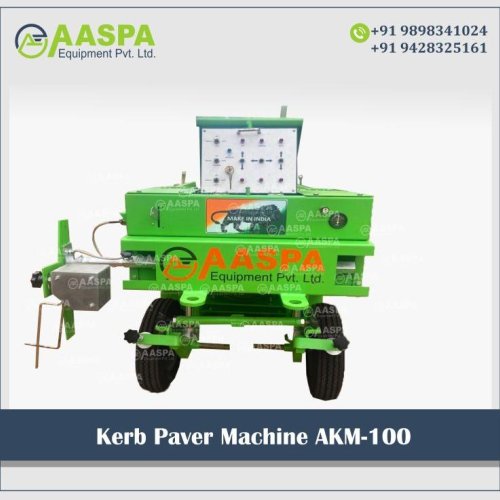

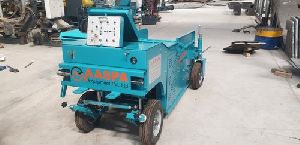

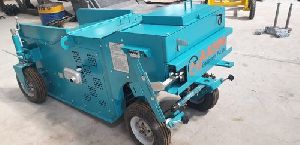

- AKM-100 KERB PAVER that can extrude is excess of 550 lin. mts. of kerbing per day at a sensible capital cost and with a small crew of semi-skilled labour.

- AASPA AKM-100 Extrusion Type Kerb Paver Machine works on the extrusion principle, in which concrete is fed into the hopper and forced through a mould to form the required shape.

- AKM-100 is designed for laying up to 550 mm height and 700 mm width.

- The machine does not employ vibration, but achieves compaction by a ramming mechanism which forces the concrete into the specially designed mould attached to the primary unit.

- Automatic sensor for steering and height controls that follow reference line Activate Windows Go to Sete, to activate Nanclows

- Quick-change mould design.

- The machine has no powered wheels - forward propulsion resultsfrom the opposite reaction to the ramming action.

- The flexibility mounted 16 hp petrol engine / 10 hp diesel engine drives the ruggedly designed ram operating mechanism and hydraulic pump.

- All top side covers are removable for ease of service.

- A small crew can successfully operate AKM-100.

- AKM-100 is at multiple project sites with a variety of kerbing applications, supported by the team of experts from AASPA & performing to the full satisfaction of the customers.
